ESP32 Dev Module For IoT (Internet of Things)

Elga Aris Prastyo Desember 19, 2020 Mikrokontroller







ESP32 dibuat oleh Espressif Systems, ESP32 adalah sistem dengan biaya yang rendah, berdaya rendah pada seri chip (SoC) dengan Wi-Fi & kemampuan Bluetooth dua mode! Keluarga ESP32 termasuk chip ESP32-D0WDQ6 (dan ESP32-D0WD), ESP32-D2WD, ESP32-S0WD, dan sistem dalam paket (SiP) ESP32-PICO-D4. Pada intinya, ada mikroprosesor Tensilica Xtensa LX6 dual-core atau single-core dengan clock rate hingga 240 MHz. ESP32 sudah terintegrasi dengan built-in antenna switches, RF balun, power amplifier, low-noise receive amplifier, filters, and power management modules. Didesain untuk perangkat seluler, perangkat elektronik yang dapat dipakai, dan aplikasi IoT, ESP32 juga bekerja dengan konsumsi daya sangat rendah melalui fitur hemat daya termasuk fine resolution clock gating, multiple power modes, and dynamic power scaling.

Module ESP32 merupakan penerus dari module ESP8266 yang cukup populer untuk Aplikasi IoT. Pada ESP32 terdapat inti CPU serta Wi-Fi yang lebih cepat, GPIO yang lebih, dan mendukung Bluetooth Low Energy.

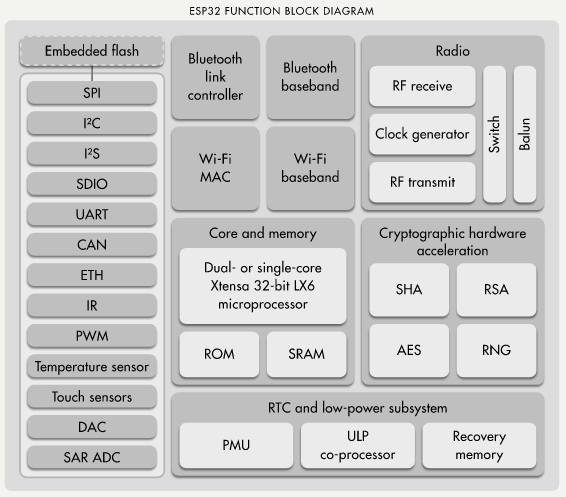

Berikut ini adalah Arsitektur dan Block Diagram dari ESP32 :




Fitur dan Spesifikasi ESP32:

  1. Processors:
    • Main processor: Tensilica Xtensa 32-bit LX6 microprocessor
    • Cores: 2 or 1 (depending on variation)
    • Clock frequency: up to 240 MHz
    • Performance: up to 600 DMIPS
    • Ultra low power co-processor: allows you to do ADC conversions, computation, and level thresholds while in deep sleep.
  2. Wireless connectivity:
    • Wi-Fi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s)
    • Bluetooth: v4.2 BR/EDR and Bluetooth Low Energy (BLE)
  3. Memory:

    • Internal memory:
    • ROM: 448 KiB
    • SRAM: 520 KiB
    • RTC fast SRAM: 8 KiB
    • RTC slow SRAM: 8 KiB
    • eFuse: 1 Kibit
    • Embedded flash:
    • 0 MiB (ESP32-D0WDQ6, ESP32-D0WD, and ESP32-S0WD chips)

    • 2 MiB (ESP32-D2WD chip)
    • 4 MiB (ESP32-PICO-D4 SiP module)
    • External flash & SRAM: ESP32 supports up to four 16 MiB external QSPI flashes and SRAMs with hardware encryption based on AES to protect developers' programs and data. ESP32 can access the external QSPI flash and SRAM through high-speed caches.
    • Up to 16 MiB of external flash are memory-mapped onto the CPU code space, supporting 8-bit, 16-bit and 32-bit access. Code execution is supported.
    • Up to 8 MiB of external flash/SRAM memory are mapped onto the CPU data space, supporting 8-bit, 16-bit and 32-bit access. Data-read is supported on the flash and SRAM. Data-write is supported on the SRAM.
  4. Peripheral input/output:

    • Rich peripheral interface with DMA that includes capacitive touch, ADCs (analog-to-digital converter), DACs (digital-to-analog converter), I²C (Inter-Integrated Circuit), UART (universal asynchronous receiver/transmitter), CAN 2.0 (Controller Area Network), SPI (Serial Peripheral Interface), I²S (Integrated Inter-IC Sound), RMII (Reduced Media-Independent Interface), PWM (pulse width modulation), and more.
  5. Security:

    • IEEE 802.11 standard security features all supported, including WFA, WPA/WPA2 and WAPI
    • Secure boot
    • Flash encryption
    • 1024-bit OTP, up to 768-bit for customers
    • Cryptographic hardware acceleration: AES, SHA-2, RSA, elliptic curve
    • cryptography (ECC), random number generator (RNG).
Berikut ini adalah bentuk Fisik Module ESP32 :

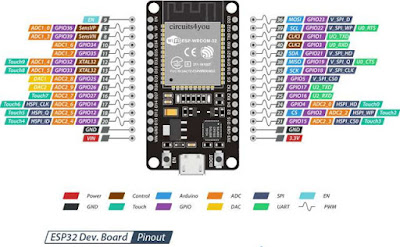

Berikut ini adalah Pin Out Module ESP32 :
